Equipped with precise cutting systems and full-process constant tension adjustment, this slitter rewinder minimizes raw material loss in processing. The slitting accuracy reaches ±0.1 mm, guaranteeing smooth and uniform edges of finished rolls.
Featuring a dual turret and four winding shafts, this automatic film slitting machine runs at speeds between 600 and 800 meters per minute. It supports processing plastic film, base paper and composite laminated materials, capable of stable output of premium finished rolls for bulk manufacturin
|
Model |
ATFQ-1300 |
ATFQ-1600 |
|
Max Unwinding Width |
1300mm |
1600mm |
|
Max Unwinding Diameter |
Φ1200mm |
Φ1200mm |
|
Slitting Width Range |
25-1250mm |
25-1550mm |
|
Available Material Thickness |
Plastic Films 12-100μm Paper 30-200gsm |
Plastic Films 12-100μm Paper 30-200gsm |
|
Max Slitting Speed |
600MPM |
600MPM |
|
Power Supply |
380V/50Hz 45-80KW |
380V/50Hz 45-80KW |
|
Size And Weight |
5000*3500*2500mm 13.8Tons |
5000*3800*2500mm 14.8Tons |
Designed with a premium dual turret frame and smart automatic reel changer, the equipment allows uninterrupted continuous operation and minimizes waiting time for roll swapping. Dependable tension adjustment together with high-precision slitting modules delivers even rewinding density, neat cut edges and outstanding winding performance. It effectively enhances overall throughput and product quality for a wide range of flexible packaging substrates.

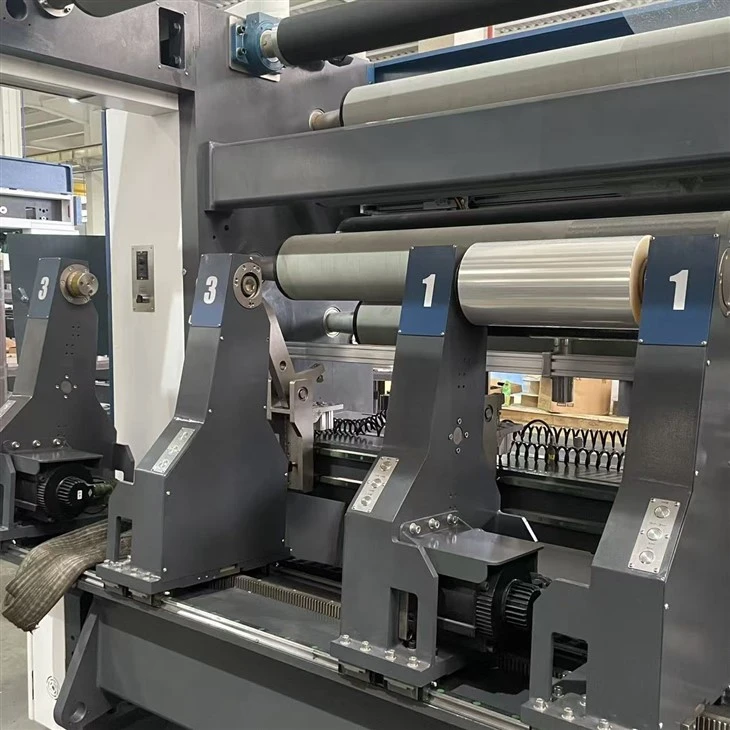

This slitter rewinder features a sturdy shaftless unwinding assembly, precise digital web correction system and dual-turret four-roller rewinding configuration, supporting seamless continuous running during full production cycles. Outfitted with servo-controlled turret positioning system, the machine accomplishes quick automatic reel replacement in just seconds. Two operating shafts sustain high-speed rewinding speed up to 600 meters per minute, meanwhile the remaining two stations complete paper core installation, finished reel takeoff and pre-production preparation simultaneously. This design effectively prevents downtime brought by traditional roll switching. With the integration of auto-cutting module, closed-loop tension regulation and laser core calibration technology, the unit significantly improves working efficiency and increases total output by more than 40%. It provides consistent winding density, flat roll surfaces and reliable product quality, widely applicable to processing different films, paper materials and composite laminates.
Slitter Rewinder FAQ
Q: Is it possible to visit your factory?
A: Yes, you are warmly welcome to visit us. Our factory is located in Wenzhou, Zhejiang, China.
Q: Can you provide machine sample or test video?
A: We support slitting tests using your own film, paper or laminated material samples in our workshop. Test videos can be provided after the trial run.
Q: What is the maximum running speed of the machine?
A: The standard model reaches a running speed of 600 MPM, equipped with automatic non-stop roll change function.
Q: What about warranty, installation and after-sales service?
A: We offer a 12-month warranty for the complete machine (wear parts excluded). Our professional engineers can provide overseas installation, commissioning and on-site operation training.
