Products Description

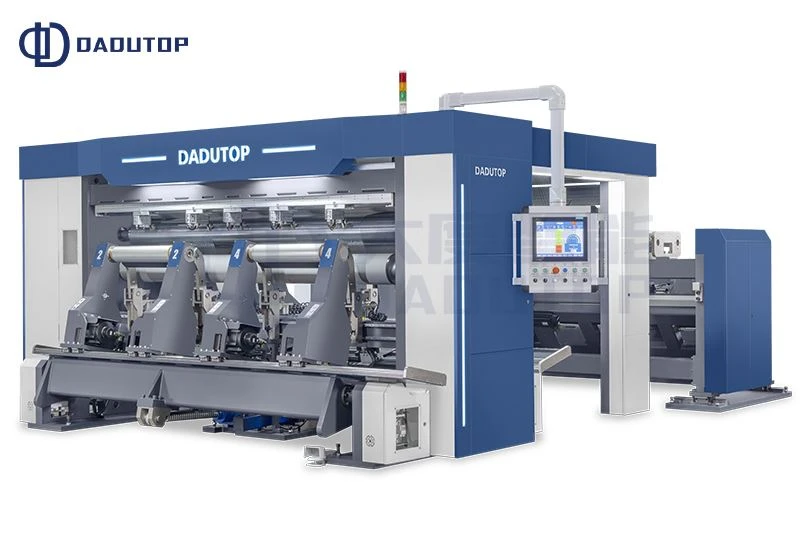

BOPP Cutting Machine is specially designed for high-speed precision slitting of BOPP, BOPET, BOPE, BOPA, CPP, PETG and other films. It is also suitable for processing roll materials such as films, packaging films, and printing films.
Products advantages
Precision Cutting System
Supports three cutting methods: razor, air knife, and shear, with automatic knife positioning accuracy of ±0.1mm.
Intelligent Tension Control
Fully automatic tension control system accommodates film thicknesses from 6–125μm, preventing wrinkles and stretching.
Compatible with Multiple Specifications
Supports widths from 500–2600mm, 1200mm Φ unwind and 1000mm Φ rewind, and is compatible with 3"/6"/steel core reels.
|
Model |
DFLM-2800 |
|
Slitting material |
BOPET/BOPP/BOPE/BOPA/CPP/PETG |
|
Material thickness |
6-125um |
|
Material width |
500-2600 |
|
Unwinding diameter |
max. 1200mm |
|
Unwinding core |
3"/6"/Steel Core |
|
Edge Control |
Pausource,Taiwan |
|
Rewinding diameter |
max. 1000mm |
|
Slitting mode |
Centre rewinding and shaftless type |
|
Speed |
Max.800m/min(according to material) |
|
Cutting blade |
Razor blade cut, burst cut, Scissors (automatic cutter position) |
|
Slitting width |
300-2500 mm |
|
Winding core |
3"/6" |
why choose us
20 Years of Industry Experience: Our core team has been deeply engaged in the slitting industry for over two decades, and our equipment is in operation in over 30 countries worldwide.
Leading R&D: Our R&D investment accounts for 15% of our revenue, and we have established a joint laboratory with Zhejiang University. Our equipment boasts an accuracy of ±0.1mm and a speed of up to 800m/min.
Strict Quality Control: Equipped with German servos and high-precision rollers, our equipment has been dynamically balanced and tested for 100 hours of endurance, with an MTBF exceeding 8,000 hours.
Full Service: We provide design, commissioning, training, remote maintenance, and spare parts support.
FAQ
Q: Can widths or speeds be customized?
A: We support OEM/ODM customization, and can adjust configurations based on material and production requirements.
Q: What is the lead time?
A: Standard models are delivered within 30 days, packaged in export wooden crates for safety and moisture-proofing.
Q: Are there any discounts for wholesale purchases?
A: Bulk purchases enjoy tiered discounts and include free consumables such as blades and rubber rollers.
Q: What is the slitting accuracy?
A: We can achieve ±0.1mm, meeting the requirements for high-precision film and film slitting.
Q: Is changing materials and blades convenient?
A: The quick-install and uninstall mechanism allows single-person operation for replacements.
Q: Is maintenance complex?
A: The modular design requires only daily lubrication and cleaning, and the system has self-diagnostic capabilities.
