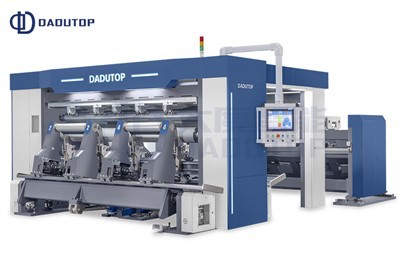

Product Introduction
The packaging material slitting machine is used to precisely slit large rolls of film, paper, and other materials into smaller rolls according to a set width. It primarily consists of an unwinding, web-correcting, slitting, rewinding, and control system.
Product advantages
High-Speed Operation
Equipped with a fully servo-driven system, the slitting speed can reach 800 m/min.
Intelligent Control
The PLC control system automatically monitors operating status and adjusts speed and tension.
Precision Slitting
Servo closed-loop control ensures a slitting error of ≤±0.1mm.
Product customization
Customizable Slitting Width
The maximum and minimum slitting widths can be customized according to customer requirements.
Customizable Tool Configuration
A variety of slitting blade types are available, including circular, flat, or pneumatic blades. The number of blades, blade spacing, and material can also be customized.
Customizable Unwind and Rewind Systems
Single- or dual-station unwinding and rewinding configurations are available, supporting various shaft types such as air shafts and differential shafts.
Customizable Appearance and Dimensions
The machine's dimensions, body color, and operator panel layout can be customized.
Technical Parameter
|
Model |
DFLM-5000 |
|
Slitting material |
BOPET/BOPP/BOPE/BOPA/CPP/PETG |
|
Material thickness |
2-125um |
|
Material width |
Max 5200mm |
|
Unwinding diameter |
max. 1500mm |
|
Unwinding core |
Steel Core |
|
Edge Control |
Pausource,Taiwan |
|
Rewinding diameter |
max. 1200mm |
|
Slitting mode |
Centre rewinding and shaftless type |
|
Speed |
Max.800m/min(according to material) |
|
Cutting blade |
Razor blade cut, burst cut, Scissors (automatic cutter position) |
|
Slitting width |
300-2500 mm |
|
Winding core |
3"/6" |
FAQ
Q: Where are the main components of the machine sourced?
A: Key components are made from Japanese, German, and Taiwanese brands to ensure stable performance.
Q: Do you provide a trial cutting service?
A: We can provide a trial cutting service. Customers can send us materials for testing.
Q: How long does it take to customize a slitting machine?
A: The typical customization time is 25–35 business days.
Q: What is the warranty period?
A: The entire machine is covered by a 12-month warranty and includes lifetime technical support.
Q: How do I replace the cutting tool?
A: The cutting tool is quick-release, allowing for easy replacement without the need for special tools.
