Built for high-efficiency converting, this slitter rewinder boasts high-precision slitting capability and real-time constant tension control across all working procedures. Material wastage is greatly optimized, while cutting accuracy is maintained within ±0.1 mm for clean and orderly finished edges.
The fully automatic machine adopts a dual turret layout with four winding shafts, supporting a line speed of 600–800 m/min. It works perfectly with plastic film, base paper and composite laminates, providing reliable production of high-spec finished rolls to meet mass order demands.
|
Model |
ATFQ-1300 |
ATFQ-1600 |
|
Max Unwinding Width |
1300mm |
1600mm |
|
Max Unwinding Diameter |
Φ1200mm |
Φ1200mm |
|
Slitting Width Range |
25-1250mm |
25-1550mm |
|
Available Material Thickness |
Plastic Films 12-100μm Paper 30-200gsm |
Plastic Films 12-100μm Paper 30-200gsm |
|
Max Slitting Speed |
600MPM |
600MPM |
|
Power Supply |
380V/50Hz 45-80KW |
380V/50Hz 45-80KW |
|
Size And Weight |
5000*3500*2500mm 13.8Tons |
5000*3800*2500mm 14.8Tons |

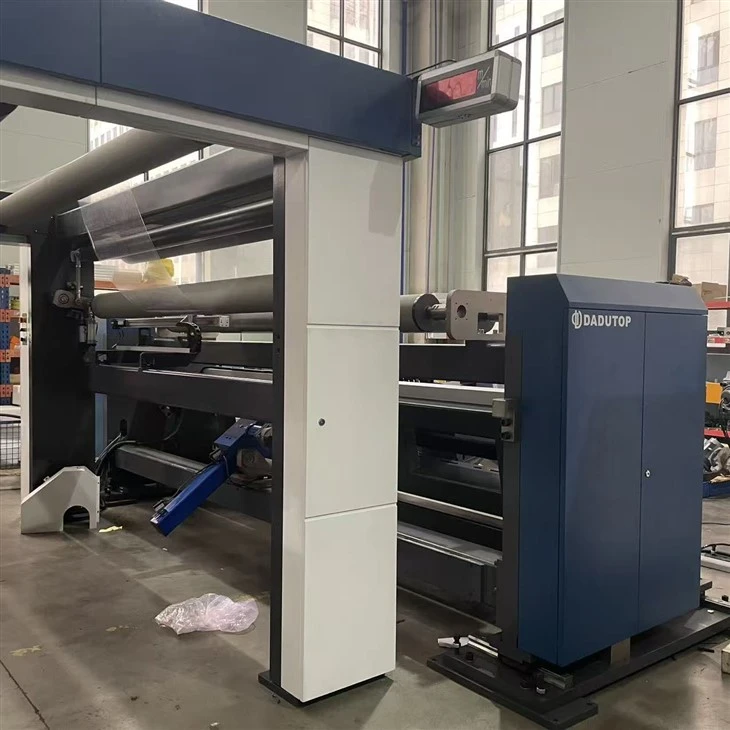

Adopting a robust dual turret construction and intelligent auto roll change mechanism, this slitting machine realizes continuous production, largely eliminating idle periods caused by finished reel exchange. Precise tension management and accurate slitting components create consistent winding density, tidy roll edges and ideal winding results. It helps manufacturers raise productivity and upgrade finished quality across diverse flexible packaging raw materials

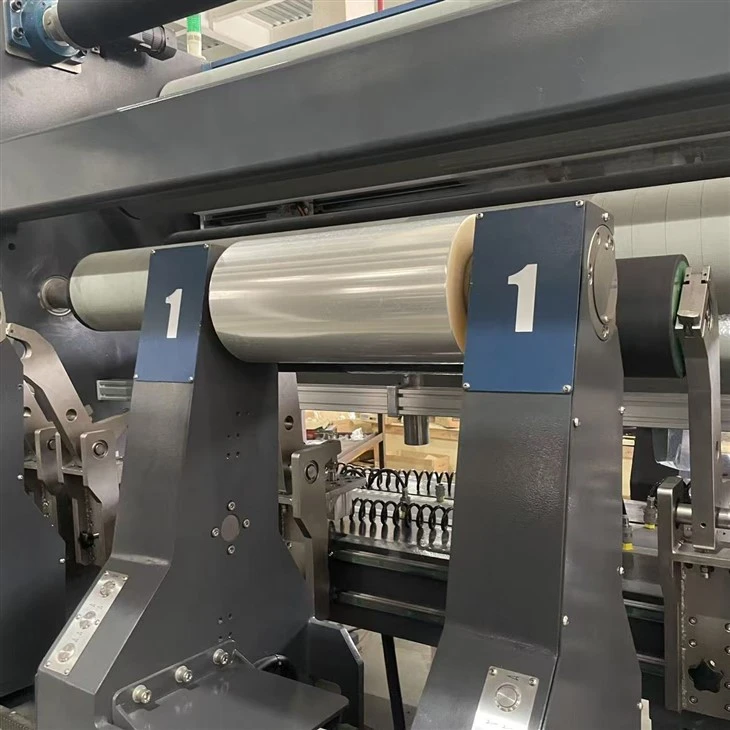

Constructed with a solid shaftless unwinding unit, high-accuracy digital web guiding device and dual-turret four-shaft rewinding layout, the machine allows uninterrupted continuous operation in complete production cycles. High-grade servo turret positioning system enables speedy automatic reel change within seconds. As two functional shafts maintain high-speed rewinding at a maximum speed of 600 m/min, the other two stations simultaneously handle paper core fitting, finished reel removal and pre-production setup. This structure thoroughly avoids production suspension caused by conventional reel swapping. Equipped with automatic cutting function, closed-loop tension management and laser core alignment technology, the whole machine greatly elevates production efficiency with comprehensive output increased by over 40%. It ensures homogeneous winding density, smooth roll faces and stable finished quality, perfectly adapted for processing various films, paper substrates and composite laminated materials.
Slitter Rewinder FAQ
Q: Is it possible to visit your factory?
A: Yes, you are warmly welcome to visit us. Our factory is located in Wenzhou, Zhejiang, China.
Q: Can you provide machine sample or test video?
A: We support slitting tests using your own film, paper or laminated material samples in our workshop. Test videos can be provided after the trial run.
Q: What is the maximum running speed of the machine?
A: The standard model reaches a running speed of 600 MPM, equipped with automatic non-stop roll change function.
Q: What about warranty, installation and after-sales service?
A: We offer a 12-month warranty for the complete machine (wear parts excluded). Our professional engineers can provide overseas installation, commissioning and on-site operation training.
