Products Description

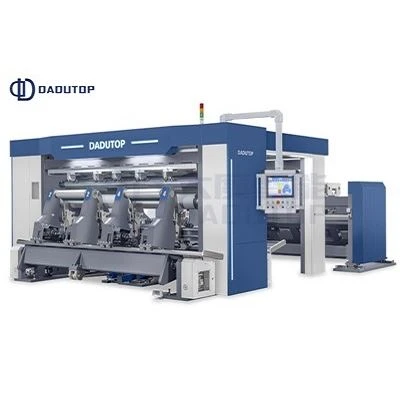

The Film Slitter Rewinder is suitable for high-speed, precision slitting and rewinding of films such as BOPET, BOPP, BOPE, BOPA, CPP, and PETG. It can be used in the packaging, printing, and functional film industries.
Products advantages
Precision Slitting
Supports three slitting modes: razor, circular, and shear. Automatic knife position adjustment with an accuracy of ±0.2mm ensures neat and consistent cuts.
Efficient Rewinding
Central winding and shaftless structure with independent servo tension control. Maximum rewind diameter of 1000mm, resulting in tight, flat finished rolls.
Intelligent Control
Touchscreen HMI operating system fully automates parameter setting, tension adjustment, and knife positioning, ensuring easy operation and increased efficiency.
Technical Data DPLM-3500 BOPP slitting line
|
Model |
DFLM-3500 |
|
Slitting material |
BOPET/BOPP/BOPE/BOPA/CPP/PETG |
|
Material thickness |
6-350um |
|
Material width |
Max 3600mm |
|
Unwinding diameter |
max. 1200mm |
|
Unwinding core |
3"/6"/Steel Core |
|
Edge Control |
Pausource,Taiwan |
|
Rewinding diameter |
max. 1000mm |
|
Slitting mode |
Centre rewinding and shaftless type |
|
Speed |
Max.800m/min(according to material) |
|
Cutting blade |
Razor blade cut, burst cut, Scissors (automatic cutter position) |
|
Slitting width |
300-2500 mm |
|
Winding core |
3"/6" |
why choose us
20 Years of Industry Experience: Our core team has been deeply engaged in the slitting industry for over two decades, and our equipment is in operation in over 30 countries worldwide.
Leading R&D: Our R&D investment accounts for 15% of our revenue, and we have established a joint laboratory with Zhejiang University. Our equipment boasts an accuracy of ±0.1mm and a speed of up to 800m/min.
Strict Quality Control: Equipped with German servos and high-precision rollers, our equipment has been dynamically balanced and tested for 100 hours of endurance, with an MTBF exceeding 8,000 hours.
Full Service: We provide design, commissioning, training, remote maintenance, and spare parts support.
FAQ
Q: What materials can it handle?
A: Compatible with BOPET, BOPP, BOPE, BOPA, CPP, PETG, and other materials, with thicknesses ranging from 6 to 350 μm.
Q: Is it customizable?
A: Supports customization of unwinding width, speed, blade type, and tension system to meet different production needs.
Q: Delivery and after-sales service?
A: Standard models are delivered in 45–60 days, with a 12-month warranty and remote and on-site technical support.
Q: Slitting accuracy?
A: Automatic blade position adjustment accuracy ±0.2 mm.
Q: Is maintenance complex?
A: Modular design, easy blade replacement, and system self-diagnostic prompts for maintenance information.
